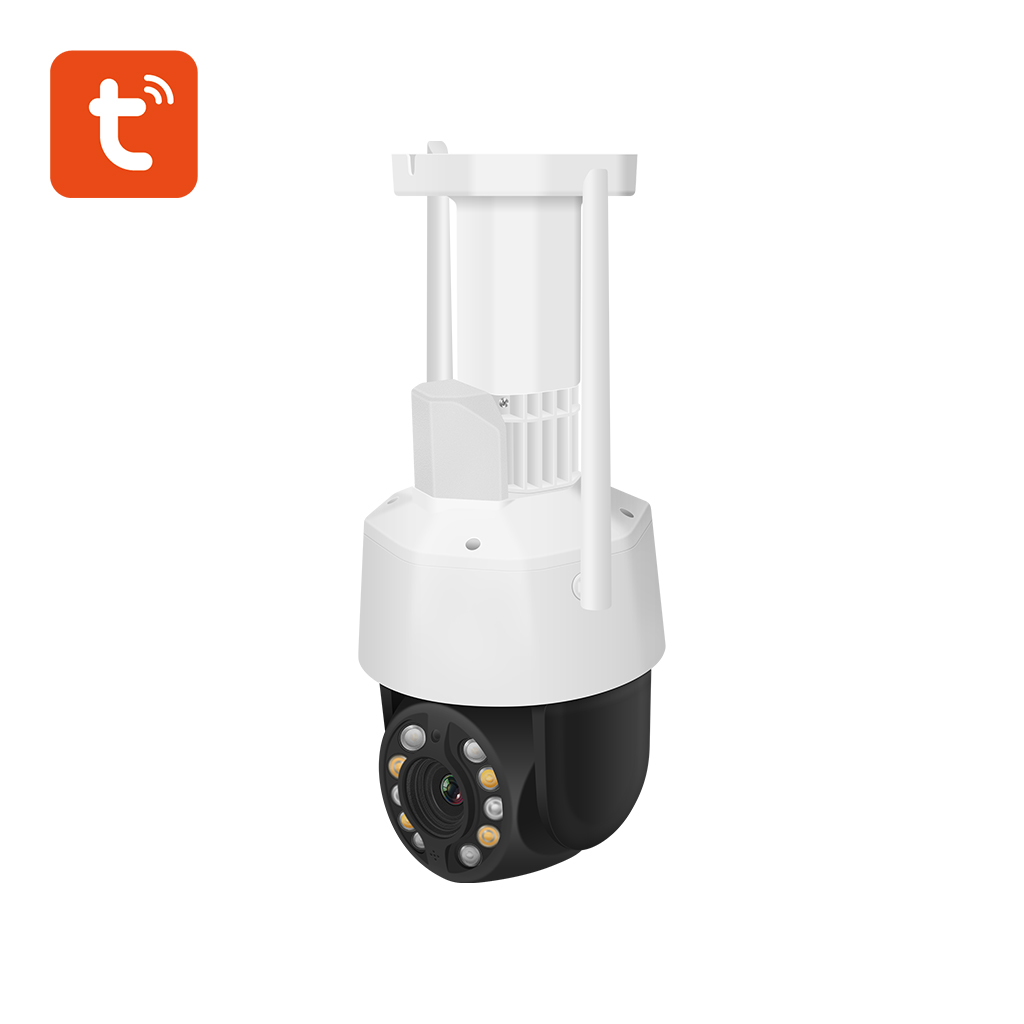

Tuya smart/ Smart life 5MP WiFi TF Card Voice Intercom 20X Optical Zoom Humanoid Tracking Onvif 4.5 Inch Infrared Floodlight PTZ IP Camera
Features:
- 1/2.8” 5.0M Sony IMX335 CMOS
- 20x optical zoom, always clear images during zoom
- Pan & tilt:Pan 360°rotation, tilt 90°
- Come with microphone and speaker, support 2-way audio
- Hi3881 WIFI chipset,dual antennas,stable signal
- Support dual lights / single IR led, etc. night vision modes
- IR filling light distance: 100M, white lamp filling light distance: 50M
- Smart 2D, 3D DNR, RAE exposure algorithm. Clear night vision, no image noise
- Support H.265 /H.264 /M-JPEG encoding. HD image quality with low bit stream
- Max.resolution up to 2592X1944@20fps
- Support humanoid detection and humanoid anto tracking
- Support alarm associated tone and alarm light prompt function
- Support alert pushed by APP, SMTP and FTP
- Support remote access by Tuya smart/ smart life APP. View images anytime and anywhere
- Support up to 128GB SD card
Pan/Tilt/Zoom, 5.3~106mm Lens, Support 20X optical Zoom
This camera can rotate 355° horizontally and 90° vertically, only one camera can cover a wider area without leaving blind spots, which also has a 20x optical zoom function, you can zoom in the image to see more details of distant objects, or zoom out to get a wider and larger field of view, without destroying the image quality.
IP66 for outdoor use, Excellent Waterproof Performance
The all-metal shell makes the camera have good waterproof, cold and heat resistance performance. Thus, you can install it to various indoor and outdoor places according to your needs.
Camera’s Working Temperature: -20°C ~ 60°C (-4℉ ~ 140℉)
Onvif compatible, support to connect to third party NVR.
Smart Humanoid Auto Tracking
When someone breaks into the shooting area, the camera will automatically rotate to track and record his movement trajectory, and push the alarm information to your mobile APP.
Powerful Two-way Intercom Function
Built-in ultra-sensitive microphone and speaker, so that no matter where you are, as long as you turn on the intercom mode in TuyaApp, you will start a smooth and stable call with your family, or scare away uninvited guests in emergencies.
Motion detection and auto tracking, sound and light alarm, and push notification to your smart phone.
Adjustable bracket, support wall mount and ceiling mount.
Specification:
|
Product Model
|
||
|
5MP 20x zoom WiFi PTZ Camera
|
||
|
Image Sensor
|
Sensor
|
1/2.8″ 5.0M Pixel CMOS
|
|
Max.resolution
|
2592×1944@20fps
|
|
|
Video compression
|
H.265 / H.264 Main profile / M-JPEG
|
|
|
Min.illumination
|
0.05Lux@F1.2 (color mode); 0.01Lux@F1.2 (b&w mode); 0Lux (IR LEDs on）
|
|
|
Lens
|
Focal length
|
5.3mm -106mm，F1.7~F3.6；
|
|
FOV
|
45°（close end）/ 3°（far end）
|
|
|
Light Control Mode
|
IR led mode
|
Support, IR filling light distance: 100M
|
|
White light mode
|
Support, white lamp filling light distance: 50M
|
|
|
Smart dual light mode
|
Support dual light smart switch
|
|
|
Audio
|
Input
|
Built-in passive microphone
|
|
Output
|
Built-in speaker
|
|
|
P2P
|
TUYA
|
Support TUYA smart/ smart life
|
|
Pan & Tilt
|
Pan & tilt control
|
2 groups of pan&tilt motors, 1 vertical, 1 horizontal
|
|
Pan & tilt angle
|
Tilt 90°, Pan 360°
|
|
|
Power off memory
|
Support power off memory function
|
|
|
PTZ reset
|
Support guard position setting, return to preset position regularly
|
|
|
Preset points
|
Support preset points setting, up to 254 points
|
|
|
Cruising
|
Support cruising among preset points
|
|
|
Functions
|
Motion detection
|
Support motion detection alert
|
|
AI humanoid detection
|
Support
|
|
|
Humanoid tracking
|
Support
|
|
|
Voice & alarm light
|
Support humanoid detection associated voice broadcast and alarm light prompts
|
|
|
Alarm push
|
Support alarm notification pushed by APP, SMTP, FTP
|
|
|
Local Storage
|
Storage
|
Support up to 128G TF card
|
|
Recording standard
|
HD/SD optional
|
|
|
Recording method
|
Manual recording, alarm recording
|
|
|
Recording view
|
Support remote recording playback
|
|
|
General Protocol
|
Network protocol
|
TCP/IP，HTTP，NTP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
|
|
ON VIF protocol
|
Standard ON VIF2.4
|
|
|
Compatibility
|
Support Hikvision, XMtech, CMS, Topsee, etc, platform access. Support ONVIF protocol access into mainstream NVR
|
|
|
Network Interface
|
Wired
|
10/100M RJ45 network interface
|
|
WIFI
|
2.4G, IEEE802.11 b/g/n protocol, support WEP,WPA,WPA2 encryption
|
|
|
Others
|
Power supply
|
12VDC@2A
|
|
Dimensions
|
180x170x260mm
|
|
|
Working temperature
|
-30°C ~60°C
|
|
|
Working humodity
|
0%-90% RH（no condensing）
|
|
Real images:
